New ZEISS ClearView Lenses

Single Vision just got upgraded.

With ZEISS ClearView SV Lenses you can offer your patients all the benefits of freeform optimization at the same cost and delivery time frame of a stock lens.

  • Freeform technology in standard single vision
  • Available as surfaced and finished SV
  • Very thin and very flat without optical compromise
  • On average 3x larger areas of excellent vision clarity
  • Freeform in standard Single Vision

    Point-by-point design optimization for a highly complex surface. This results in an SV lens that is both very flat and thin and achieves excellent optics – with clear viewing from the lens center to the periphery.

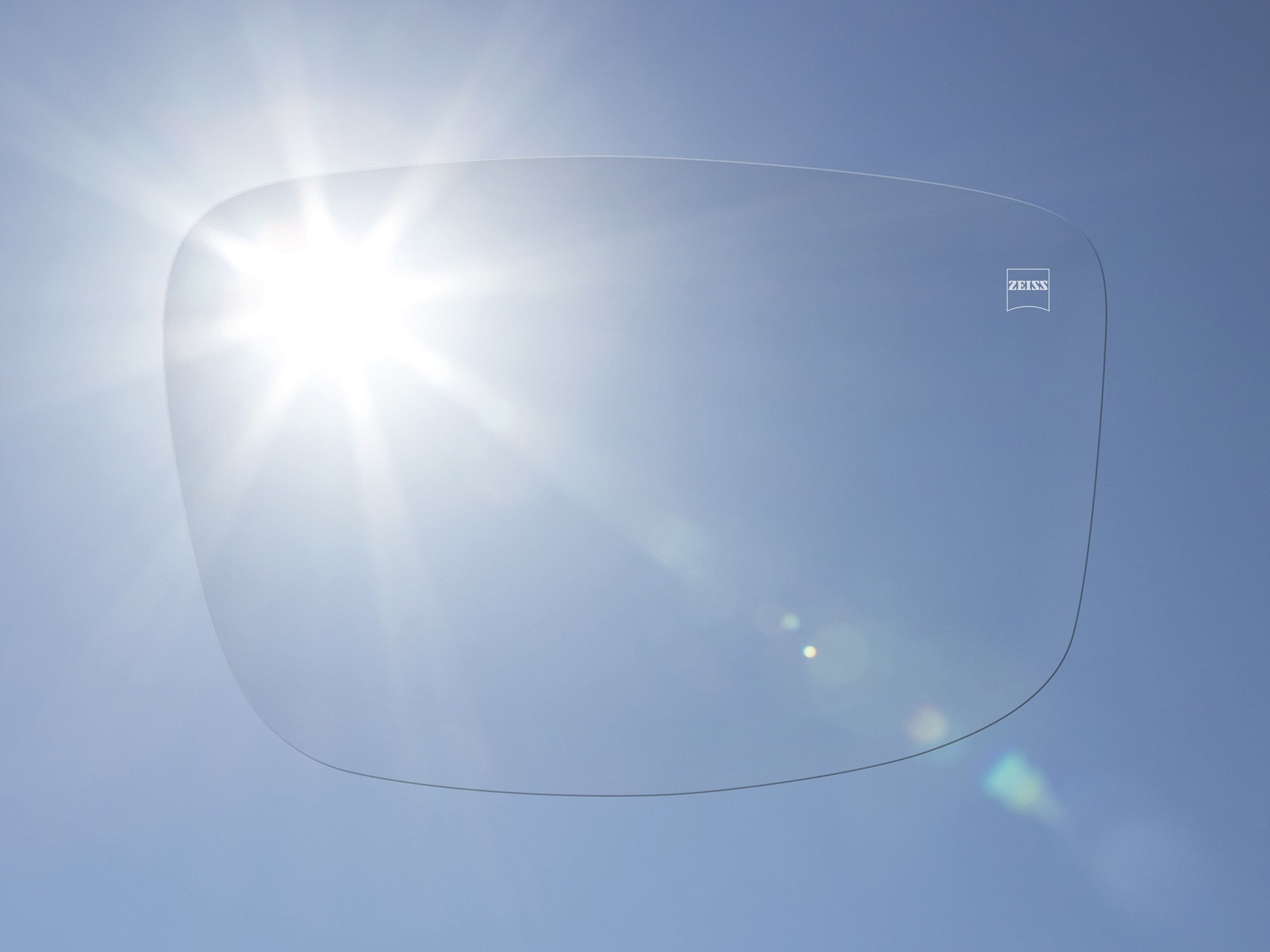

  • ZEISS UVProtect Technology

    ZEISS ClearView SV Lenses come standard with ZEISS UVProtect Technology embedded in the lens material.

Standard SV lenses compromise on optics.

Standard single vision (SV), whether spherical (SPH) or aspherical (AS) are globally the most sold lens type. This lens category is delivered either by stock finished single vision (FSV) with their distinct advantages of a lower cost and fast delivery time, or by SV surfaced. Standard single vision lenses have fallen behind in one of the most important features for every eyeglass  wearer: they typically do not provide great optics away from the lens center. In particular, the demand for flatter and thinner SV lenses has compromised their peripheral optical performance.

FSV stock lenses

Standard Spherical (SPH) Lenses

  • Optimized by using only one free parameter in the lens radius
  • Peripheral rays are more strongly refracted than rays at the lens center (spherical aberrations) resulting in optical compromise
  • Any acceptably flat lens results in peripheral blur for the wearer

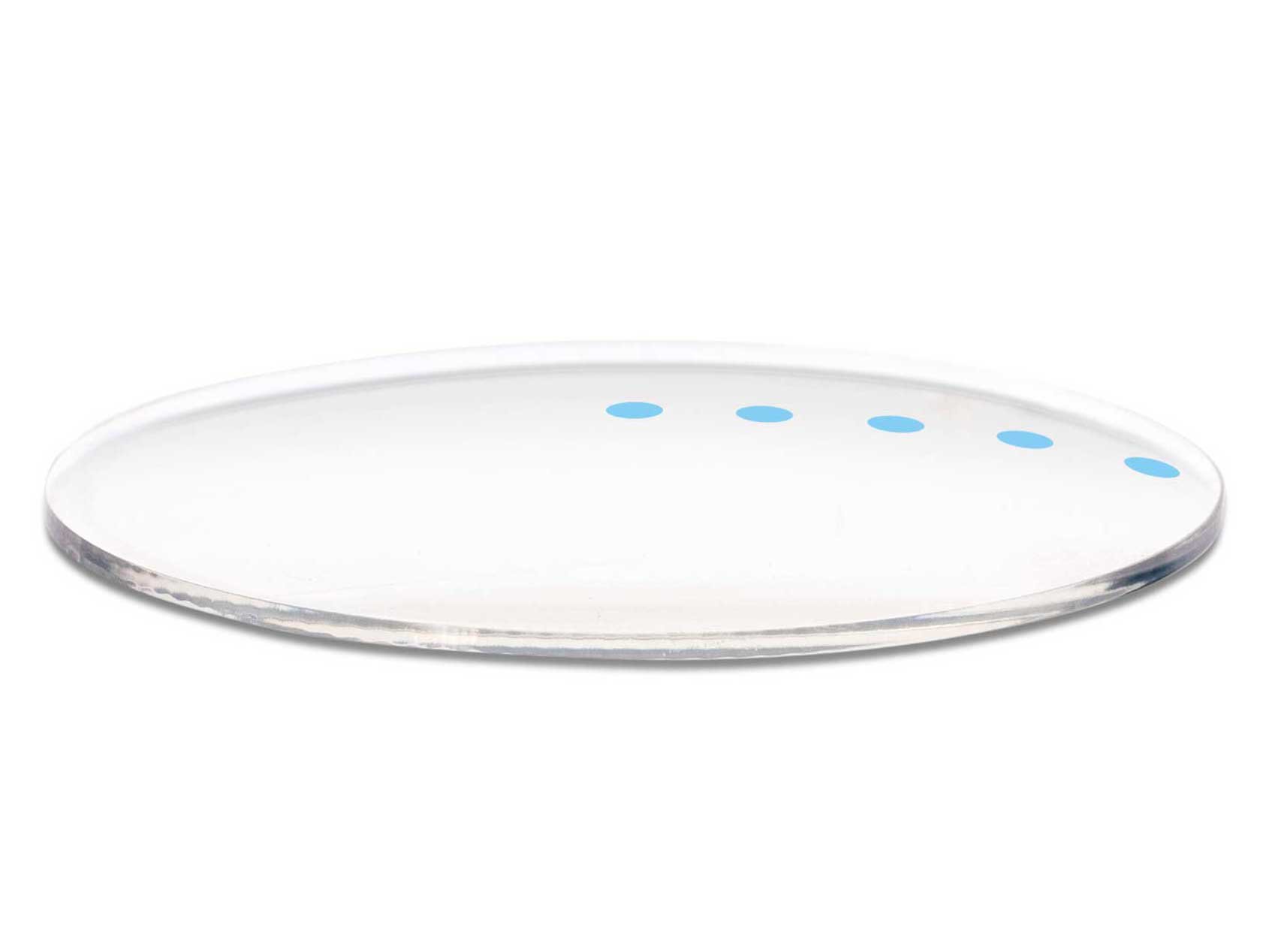

Good Aspherical (AS) Lenses

  • Optimized by using five free parameters in one meridian
  • One aspherical surface, usually on the front, but the back surface remains a simple toric surface (two spheres at 90°)
  • Provides optics similar to SPH, while improving on flatness
  • When sph and cyl power increase, the same constraints result in increasing optical errors

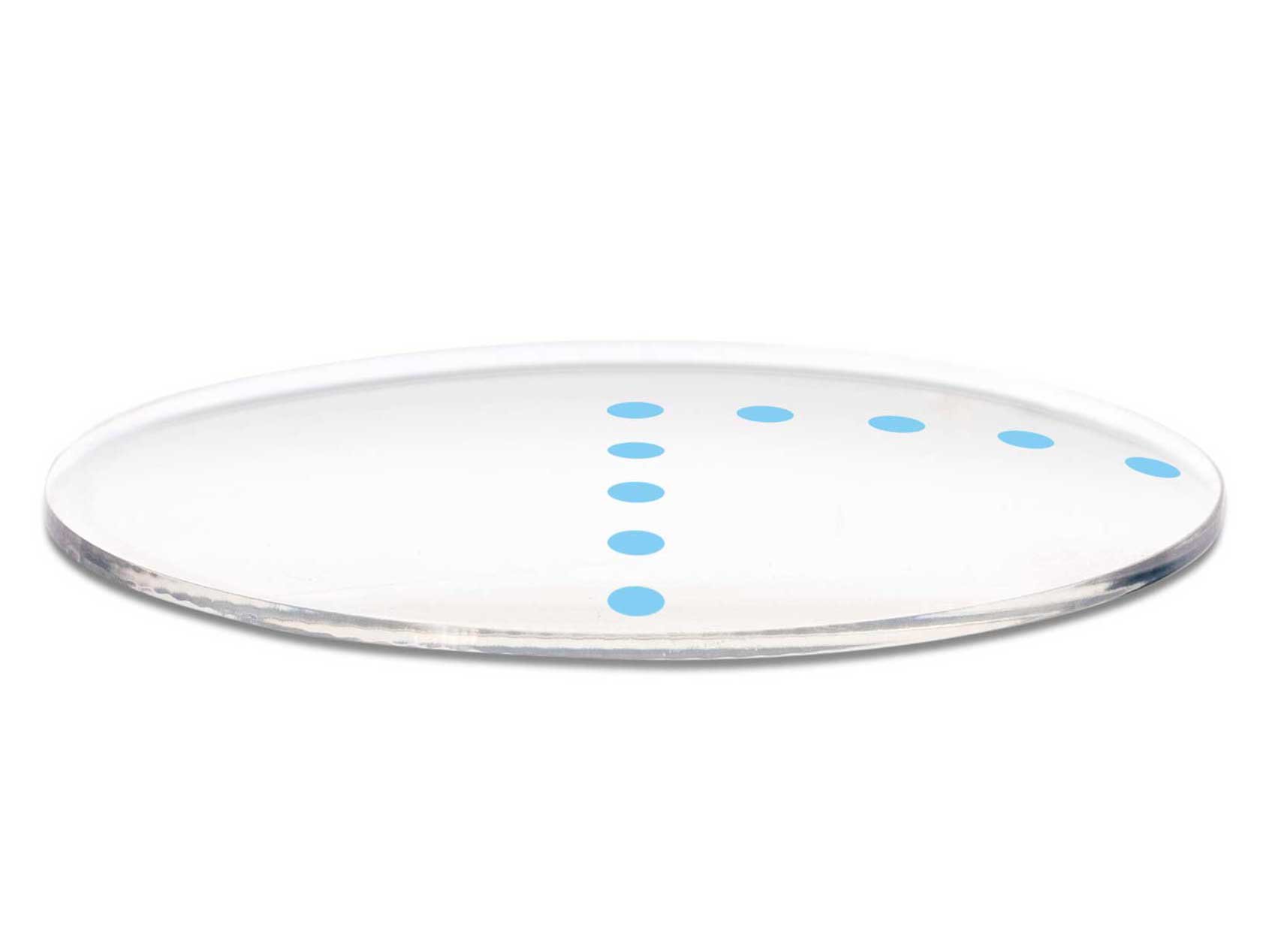

Better Double Aspherical (DAS) Lenses

  • Optimized using nine free parameters in two perpendicular meridians and blended in between
  • Replaces the toric back surface of an AS with two aspherical shapes perpendicular to each other (atoric)
  • Improvement on an AS design, but blended area still compromises the optics

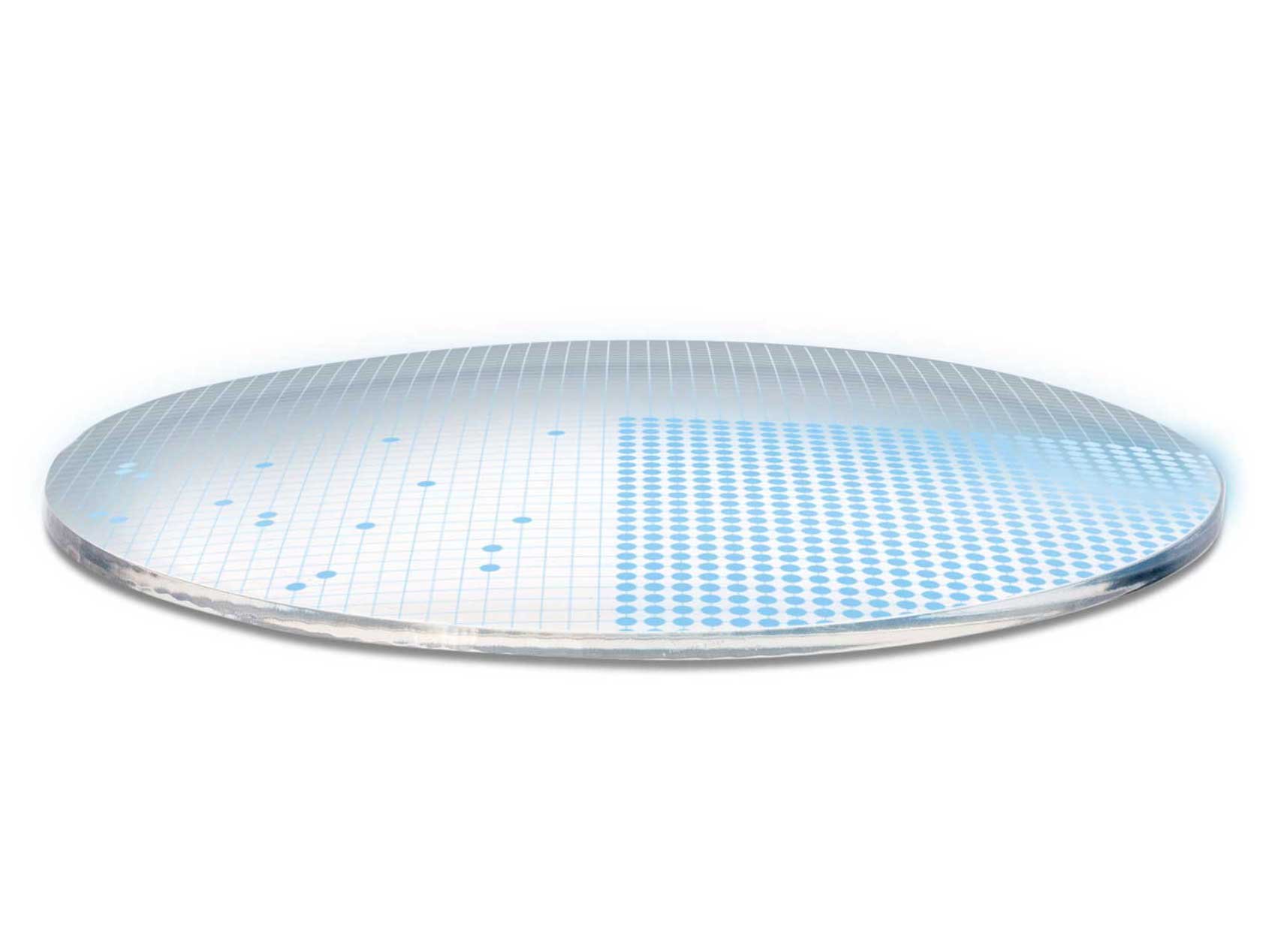

Best Freeform Single Vision Lenses

  • Point-by-point lens design optimization for a highly complex lens surface
  • The result is an FSV lens that is both very flat and thin and achieves excellent optics – with clear viewing from the lens center to the periphery

ZEISS ClearView SV Lenses

Inspired by patients demand

Patients demand comfort and clarity, but Single Vision lenses compromise on optics.2 ZEISS has tackled the opportunity for optical improvement of conventional SV lens designs by identifying a method to evaluate optical quality and improve lens optimization.

A breakthrough in optics and aesthetics.

With ZEISS ClearView SV Lenses, patients will experience excellent vision clarity from the lens center to the periphery, in a lens that is flatter, thinner, and more attractive-looking than conventional lens designs that rely on steeper base curves to provide acceptable optical performance.

A breakthrough in optics and aesthetics.

Freeform on Standard Single Vision

  • Point-by-point optimization across the lens surface
  • 700 free calculation parameters in every lens design
  • Maximum level of optimization
  • Available as surfaced and finished SV

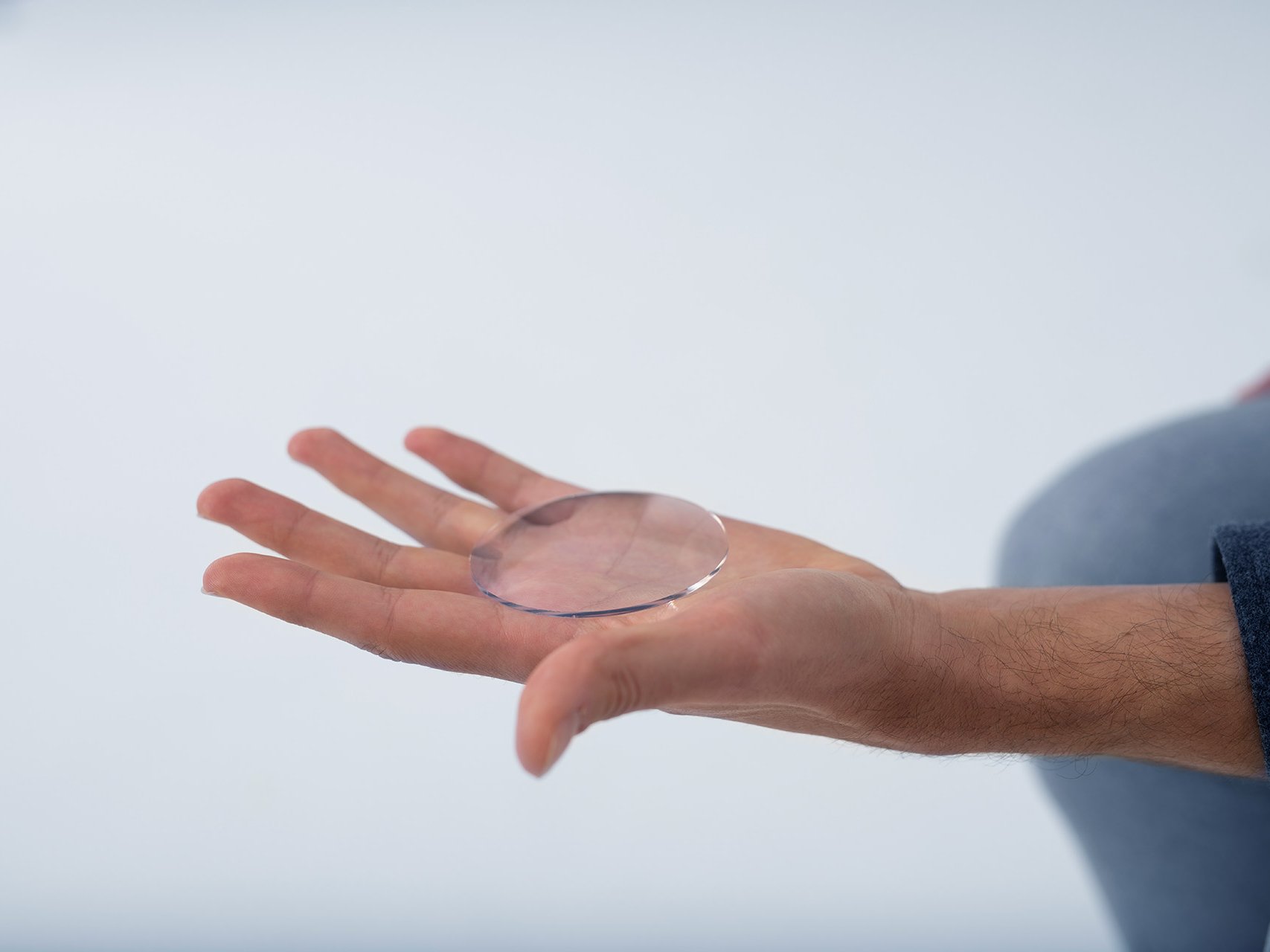

Up to 16% thinner

  • Up to 16% thinner3 than ZEISS spherical (SPH) SV
  • Up to 8% thinner4 than ZEISS aspherical (AS) SV - without compromising vision
  • Point-by-point optimization and ZEISS ClearFormTM Manufacturing Technology allows for flatter lenses with a thickness reduction at the lens edge for minus lenses and in the lens center for plus lenses

Up to 49% flatter

  • On average 36% flatter lenses across all prescriptions when compared to ZEISS AS 1.6 SV
  • Up to 49% flatter lenses for the minus range6
  • Up to 25% flatter lenses for the plus range7
  • No optical compromises

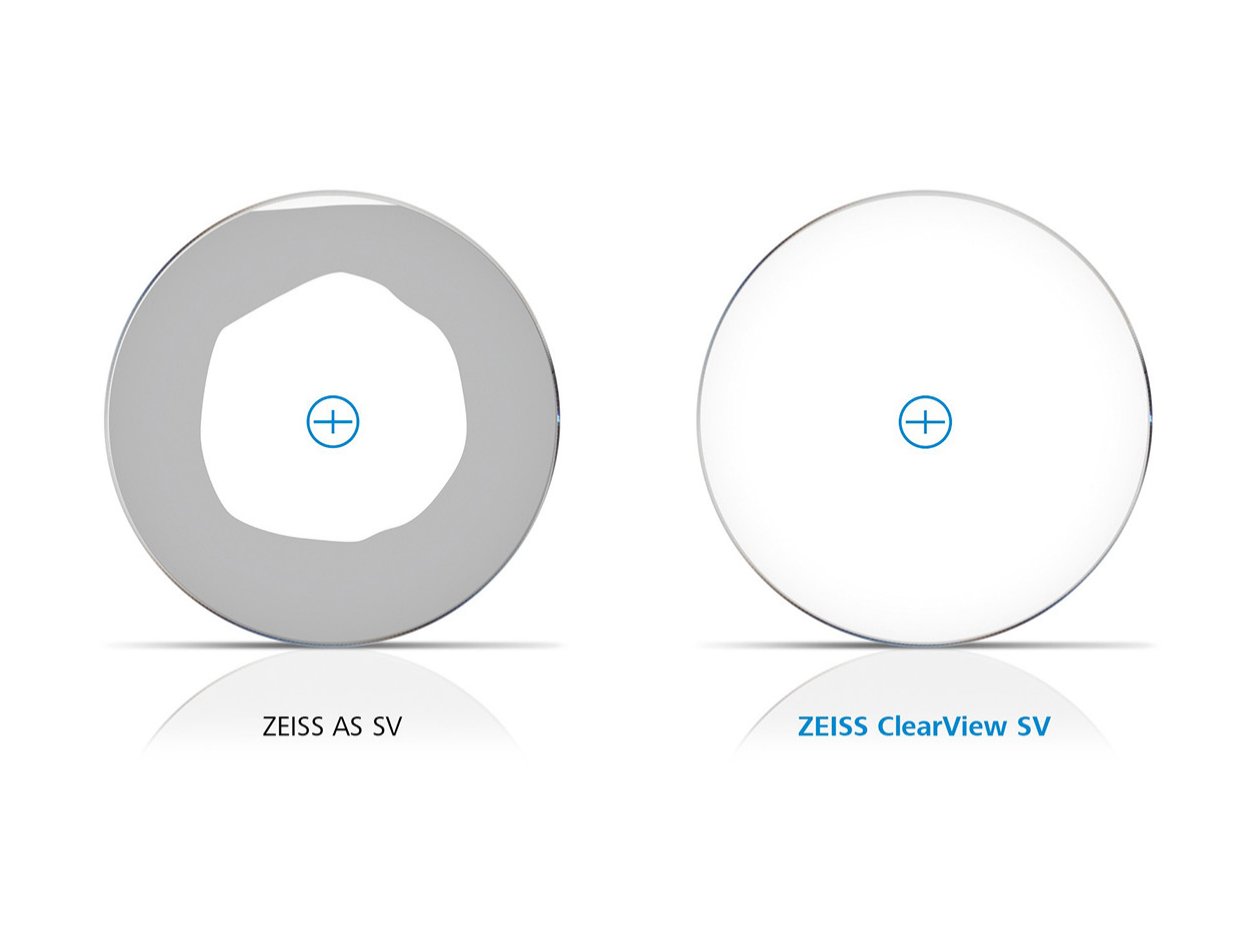

3x larger zone of clarity

  • Clear viewing from the lens center to the periphery
  • On average 3x larger zone of excellent vision clarity when compared to ZEISS AS SV lenses
  • Up to 4.6x larger area for higher myopic prescription, and up to 5.1x larger area for higher hyperope prescriptions1

Proven patients satisfaction with ZEISS ClearView SV Lenses

Confirmed by a wearer trial with single vision eyeglass wearers using a blind product testing procedure, ZEISS ClearView SV Lenses are proven superior to conventional SV lenses.2
  • 100 %

    had a very good/good immediate impression with ZEISS ClearView SV.2

  • 78 %

    After one week of wear, 78% of study participants preferred the vision performance of ZEISS ClearView SV compared to ZEISS AS SV.2

  • 89 %

    of wearers strongly agreed or agreed that they had experienced all day visual comfort with ZEISS ClearView.2

  • 79 %

    of wearers strongly agreed or agreed that ZEISS ClearView provides clear vision across the entire lens for near, intermediate and distance vision.2

ClearView SV Lenses

A new standard in single vision at ZEISS.

ClearView SV Surfaced

ClearView Finished SV

Freeform/Digital Lens Surfacing Technology
Previously only utilized for the most premium lens designs

  • ClearForm® Technology
    New 7 step process that bring Freeform designs to stock lenses
  • Made to order

Held on stock for fastest delivery

The ZEISS ClearView Freeform SV lens design is brought to standard single vision via 2 delivery / production methods:

  1. ClearView SV surfaced lenses are produced using the latest Freeform Rx surfacing equipment, previously used only for the most premium lens categories - now fully utilized and embraced for standard single vision category
  2. ClearView Finished SV stock lenses are produced using a new innovation from ZEISS called ClearForm® technology – this is the process which brings a Freeform lens design into a pre-made finished stock lens.

ClearForm® Technology freeform design for finished stock lenses

Technology explained.

  • ZEISS ClearView Lens Design

    Complex mathematical simulation tools are used to calculate the required mold designs.

  • Freeform Mold Generation

    The complete freeform shapes are incorporated into the molds by using highly accurate numerically controlled (CNC) generators.

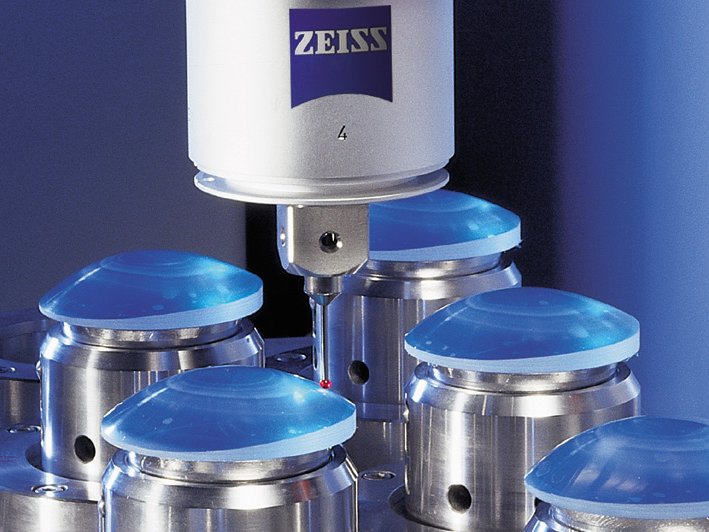

  • CMM Metrology Measurement

    Using ZEISS' industrial metrology expertise, final molds are checked for accuracy and precision with a ZEISS coordinate measuring machine (CMM) where over 1,500 points on the surface of each mold are analyzed.

  • Specialized Mold Pairing

    Special optimization of front and back mold pairings to deliver the complex free-form optics across the entire prescription range. 2D Data Matrix Code (DMC) is used in the manufacturing process to precisely track molds and lenses as part of an automated industry 4.0 process.

  • Casting/Coating/Quality Checks

    Finally, finished lenses are checked by means of CMM against the ZEISS Vision Clarity Simulation to ensure the final delivers on the optical promise.

Contact Us

Schedule an appointment

Our experts will visit you at your practice

The information entered in the contact form will be used to answer your request by Carl Zeiss Vision Care by E-Mail or phone. Click here to read our statement on data protection.

Become a ZEISS partner

Join forces with us and benefit from a strong partnership

The information entered in the contact form will be used to answer your request by Carl Zeiss Vision Care by E-Mail or phone. Click here to read our statement on data protection.

  • 1

    Based on a visual clarity simulation of a 50 mm diameter lens area for 1.60 index ZEISS ClearView FSV lenses compared to 1.60 ZEISS AS FSV lenses. Average of +5D, +3D, +1D, -1D, -3D, -5D, and -7D with and without a cylinder of -2D. Quantitative analyses by Technology & Innovation, Carl Zeiss Vision GmbH, 2020.

  • 2

    Study participants were asked to rate how important different aspects (“price”, “to see clearly across the entire lens”, “easy to adapt to”, “comfortable vision across the entire lens”, “aesthetics”, “available coatings”, “matches the frame”) are for them when choosing new eyeglass lenses. Wearer trial comparing 1.60 ZEISS ClearView FSV and 1.60 ZEISS AS FSV in a laboratory setup and in everyday life. N=20 study participants. Technology & Innovation, Carl Zeiss Vision GmbH, 2020.

  • 3

    Measurements of lens thickness on 1.60 ZEISS ClearView FSV lenses compared to ZEISS SPH FSV lenses over a range of prescriptions (-5, -3, -1, +1, +3, +5D with and without cyl -2D). Maximum reduction of 16% for center thickness of +5.00/-2.00. Quantitative analyses by Technology & Innovation, Carl Zeiss Vision GmbH, 2020.

  • 4

    Measurements of lens thickness (edge thickness at 50 mm diameter for minus lenses; center thickness for plus lenses) on 1.60 ZEISS ClearView FSV lenses compared to ZEISS AS FSV lenses over a range of prescriptions (-7, -5, -3, -1, +1, +3, +5D with and without cyl -2D). Maximum reduction of 8% for center thickness of +3.00/0.00. Quantitative analyses by Technology & Innovation, Carl Zeiss Vision GmbH, 2020.

  • 5

    Measurements of lens flatness (base curve) on 1.60 ZEISS ClearView FSV lenses compared to ZEISS SPH FSV lenses over a range of prescriptions (-5, -3, -1, +1, +3, +5D with and without cyl -2D). Maximum reduction of 49% of -5.00D with and without cyl -2D. Quantitative analyses by Technology & Innovation, Carl Zeiss Vision GmbH, 2020.

  • 6

    Measurements of lens flatness (base curve) on 1.60 ZEISS ClearView FSV lenses compared to ZEISS AS FSV lenses over a range of prescriptions (-7,-5,-3,-1,+1,+3,+5D with and without cyl -2D). Maximum reduction of 32% for -5.00D with cyl -2D. Quantitative analyses by Technology & Innovation, Carl Zeiss Vision GmbH, 2020.

  • 7

    Measurements of lens flatness (base curve) on 1.60 ZEISS ClearView FSV Lenses compared to ZEISS SPH FSV Lenses. Average of -5D, -3D, -1D, +1D, +3D, +5D with and without cyl -2D. Maximum reduction of 49% of -5.00D with and without -2D cyl for minus lenses. Maximum reduction of 25% of 5.00D with and without -2D cyl for plus lenses. Quantitative analyses by Technology & Innovation, Carl Zeiss Vision GmbH, 2020.

  • 8

    Tested by ISO 21702:2019(E) for enveloped viruses and tested by ISO 22196:2011(E) for Gram-negative and Gram-positive bacteria. Efficacy proven after 24 hours as defined by ISO standards.
